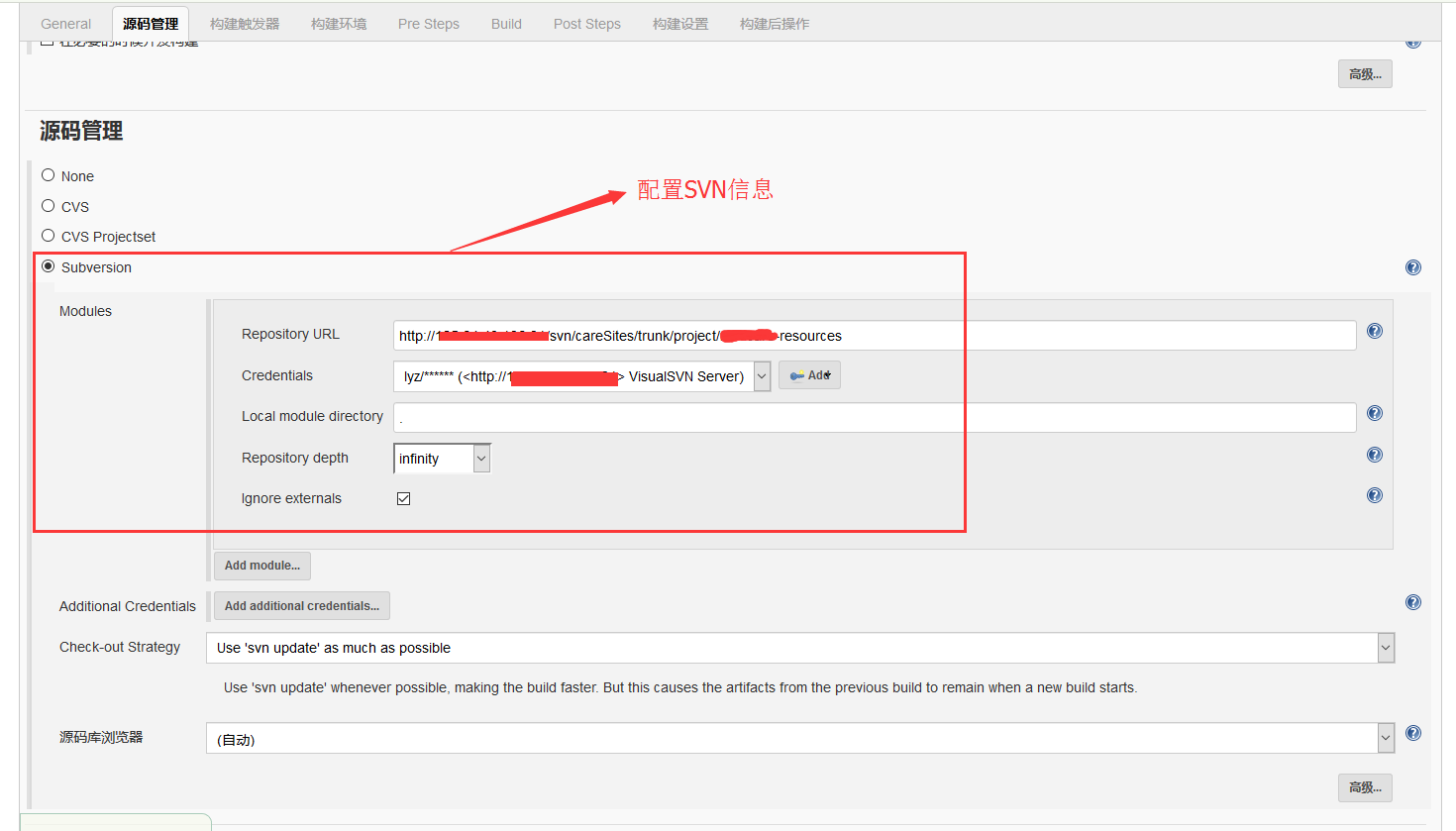

源码管理-配置SVN信息


[](()配置Pre Steps

[](()配置Post Steps

配置完成后保存。

[](()构建项目

回到主页，点击立即构建项目按钮，如下图：

可看到页面上出现对maven_test的构建进度条，点击进度条即可进入日志输出页面，如下图：

输出如下日志，则代表构建并部署到tomcat成功。

[](()tomcat.sh脚本

最后，我们给出tomcat.sh脚本的内容，如下所示。

#!/bin/sh

java env service name

SERVICE_NAME=tomcat_service

case “$1” in

start)

/usr/local/tomcat/test-tomcat-10000/bin/startup.sh

;;

stop)

sleep 5

edu-service-aa.jar edu-service-aa-bb.jar

P_ID=ps -ef | grep -w "test-tomcat-10000" | grep -v "grep" | awk '{print $2}'

if [ “$P_ID” == “” ]; then

echo “=== $SERVICE_NAME process not exists or stop success”

else

echo “=== S E R V I C E N A M E p r o c e s s p i d i s : SERVICE_NAME process pid is: SERVICEN​AMEprocesspidis:P_ID”

echo “=== begin kill S E R V I C E N A M E p r o c e s s , p i d i s : SERVICE_NAME process, pid is: SERVICEN​AMEprocess,pidis:P_ID”

kill $P_ID

fi

;;

restart)

$0 stop

sleep 2

$0 start

echo “=== restart $SERVICE_NAME”

;;

*)

restart

$0 stop

sleep 2

$0 start

;;

esac

exit 0

[](()构建Java项目

---

Jenkins构建Jar包发布到远程服务器和构建War包发布到远程服务器配置基本一致，只是Post Steps配置稍有不同。

[](()配置Post Steps

配置Jar包发布到远程服务器的Post Steps配置如下：

[](()构建项目

[](()account-server.sh脚本

最后，我们也给出account-server.sh脚本的内容，如下所示。

#!/bin/sh

java env

export JAVA_HOME=/usr/local/jdk/jdk1.8.0_144

export JRE_HOME=$JAVA_HOME/jre

service name

APP_NAME=account

SERVICE_DIR=/usr/local/dubbo-server/$APP_NAME

SERVICE_NAME=medcare-dubbo-$APP_NAME

JAR_NAME=$SERVICE_NAME.jar

PID=$SERVICE_NAME.pid

cd $SERVICE_DIR

case “$1” in

start)

nohup $JRE_HOME/bin/java -Xms256m -Xmx512m -jar $JAR_NAME >/dev/null 2>&1 &

echo $! > S E R V I C E D I R / SERVICE_DIR/ SERVICED​IR/PID

echo “=== start $SERVICE_NAME”

;;

stop)

kill cat $SERVICE_DIR/$PID

rm -rf S E R V I C E D I R / SERVICE_DIR/ SERVICED​IR/PID

echo “=== stop $SERVICE_NAME”

sleep 5

edu-service-aa.jar edu-service-aa-bb.jar

P_ID=ps -ef | grep -w "$SERVICE_NAME" | grep -v "grep" | awk '{print $2}'

if [ “$P_ID” == “” ]; then

echo “=== $SERVICE_NAME process not exists or stop success”

else

echo “=== S E R V I C E N A M E p r o c e s s p i d i s : SERVICE_NAME process pid is: SERVICEN​AMEprocesspidis:P_ID”

echo “=== begin kill S E R V I C E N A M E p r o c e s s , p i d i s : SERVICE_NAME process, pid is: SERVICEN​AMEprocess,pidis:P_ID”

kill -9 $P_ID

fi

;;

restart)

$0 stop

sleep 2

$0 start

echo “=== restart $SERVICE_NAME”
